Spreader type
Single Lift
Twin Lift
long-Twin

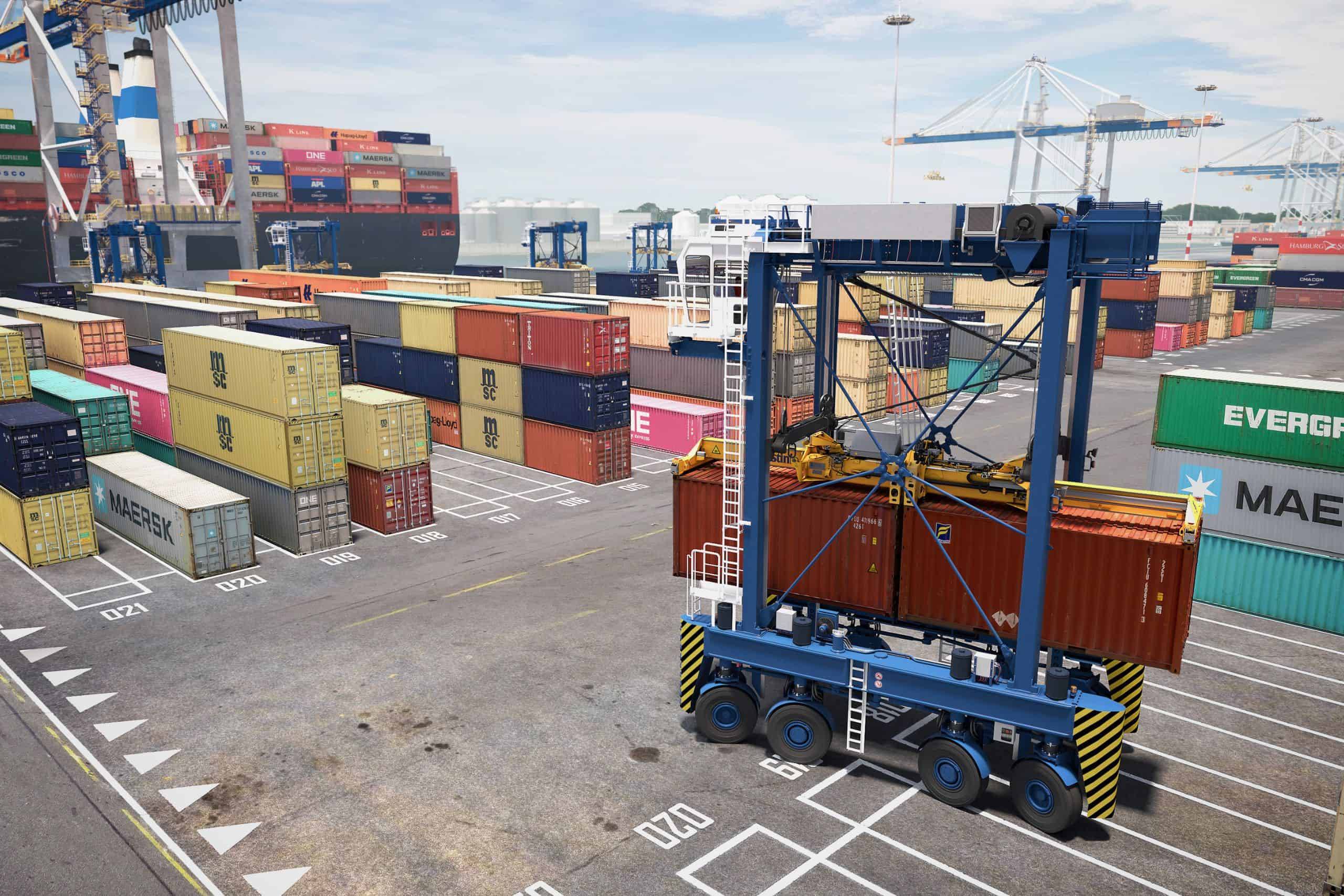

Straddle Carrier Spreaders features
Optimized Visibility
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Cylinder
Telescopic System
A strong hydraulic cylinder based telescoping system telescopes the mono-beams in and out of the midframe. The cylinder is fast, produces little noise and requires no lubrication.
Collision Protection
A mechanical blocking device driven by a hydraulic cylinder is mounted outside the midframe to absorb horizontal forces on the end beam during collision with a container. It also secures spreader telescoping positions.
Gap Detection System
The gap detection system is a security system to prevent the spreader from locking in single mode on two (2) 20ft. containers.
Patented Twistlock
Design
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Dampening
brackets
Our straddle carrier spreader are equipped with a dampening bracket to limit the spreader damage while moving with a loaded carrier.
Landing
pin
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Automatic Greasing System
Our automatic greasing system can service up to 50 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
DRIVEN BY SUCCESS
Straddle Carrier Spreaders Options
LED Lights
Dimmable
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
Automatic
Positioning System
Automatic Positioning System adjusts the length and width of the spreader. Complete APS consists of multiple sensors which are mounted on the end beams. APS ensures smooth and fast aligning off the spreader on the container.
Working Lights At
The Twistlocks
Time pressure leaves no room for error, let alone accidents. To increase productivity and for safety purposes, LED lights can be installed at the twistlocks to see the twistlock status.
Safety
Striping
It’s possible to fully customize our lifting equipment. Striping is often used as a safety option that shows the moving elements.
Safety Lugs
Or Hooks
Four (4) lifting lugs or hooks with each a capacity of 10t can be installed next to the twistlocks for vertical lifting of
Height indication
system
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
Lock/Unlock Flags
On The Twistlocks
The red elements on the top of the twistlocks are a very good solution to see whether the twistlocks are locked or unlocked. This option can increase crane productivity.

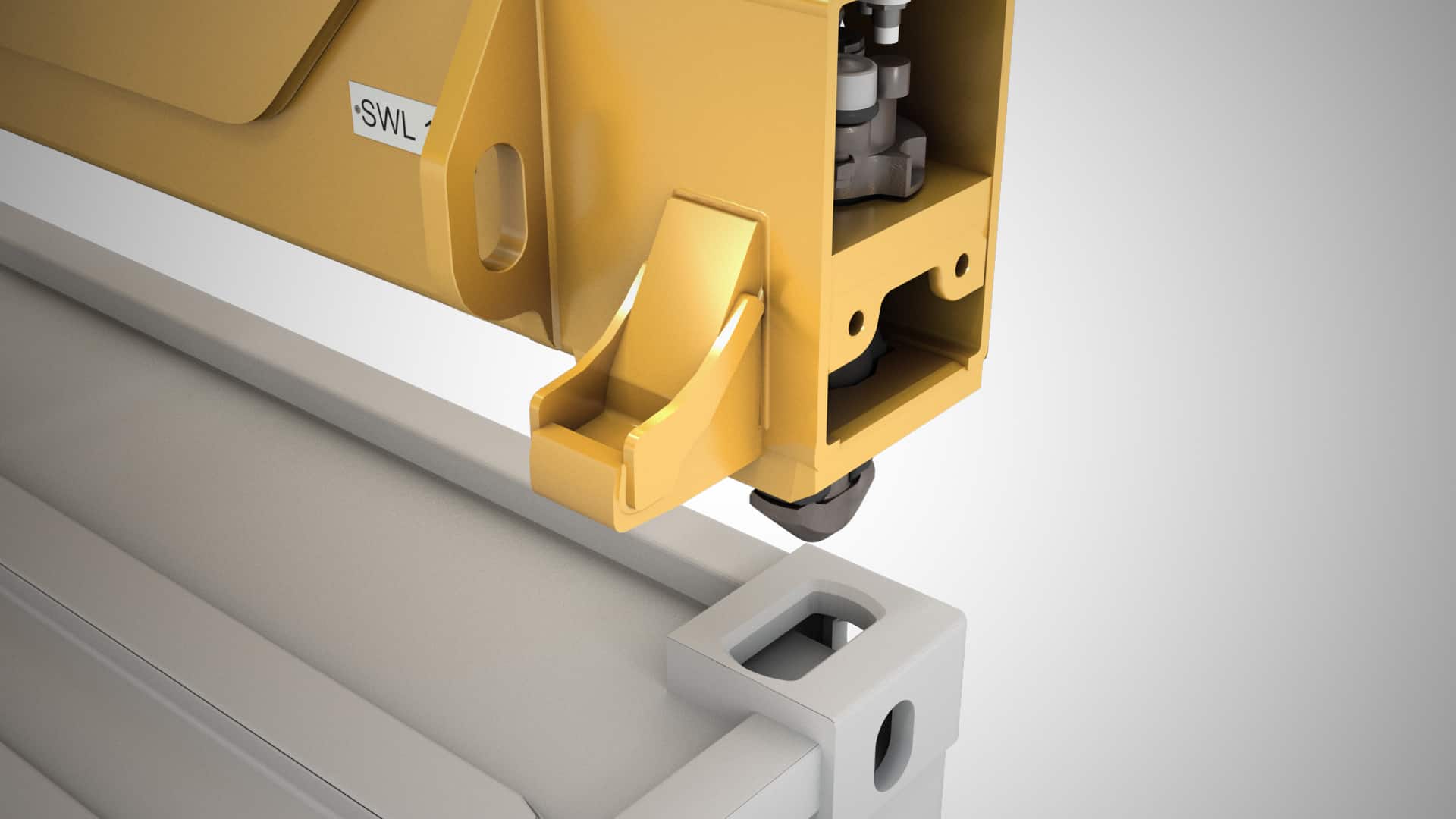

Overheight
Brackets
Four (4) brackets can be installed on the endbeams of your spreader to connect various brands of overheight frames, thus improving the versatility of the spreader.
Safety
Stops
Our spreader is equipped with three safety stops to stop the spreader at any given time: one on the E-box and one on either side of the midframe. By pressing any one of these safety stops the spreader stops operating. On request more safety stops can be on the spreader for extra safety.

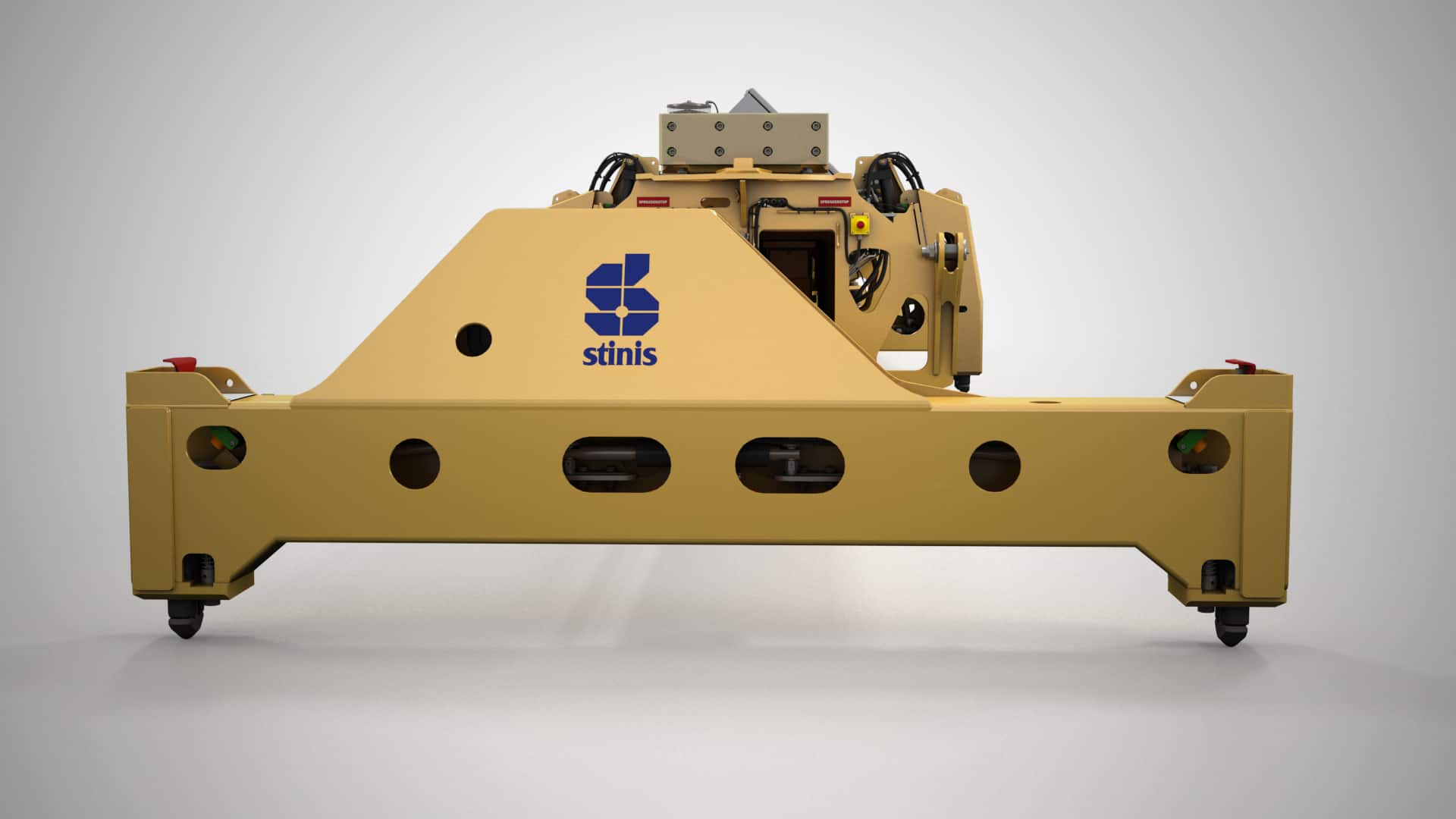

Snow
Endbeam
The snow end beam is a useful option for terminals that experience snow, sand or debris on containers. Instead of needing to clear the whole container, it removes snow, sand and debris from around the corner castings. IThis results in smoother operation and could extend the lifetime of your spreader end beam.

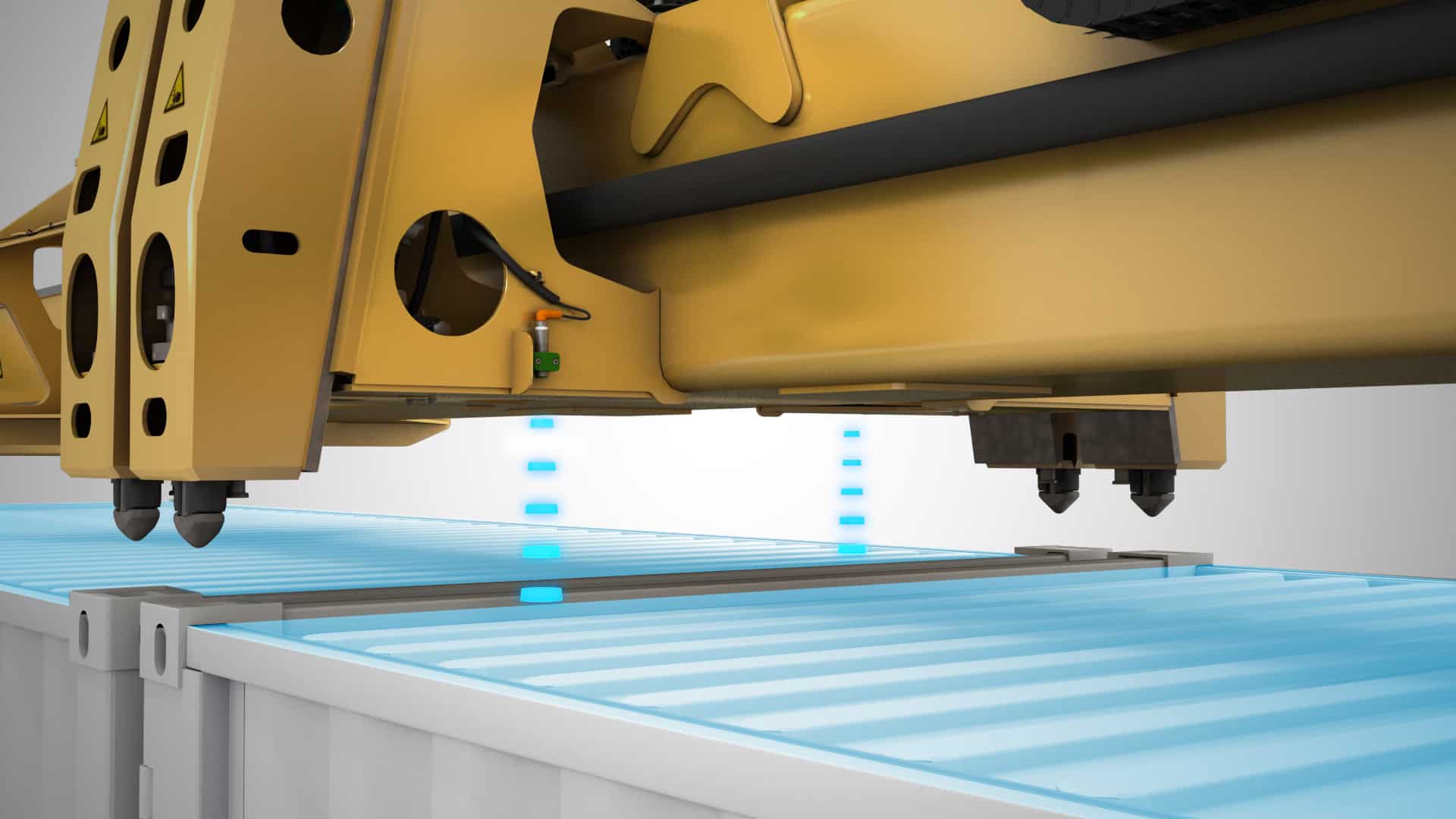

Roof Detection
System
In addition to the gap detection system, and optional roof detection system can be installed on your spreader. These sensors detect container tops. This completes a full Twin Twenty Detection System for safe operation.

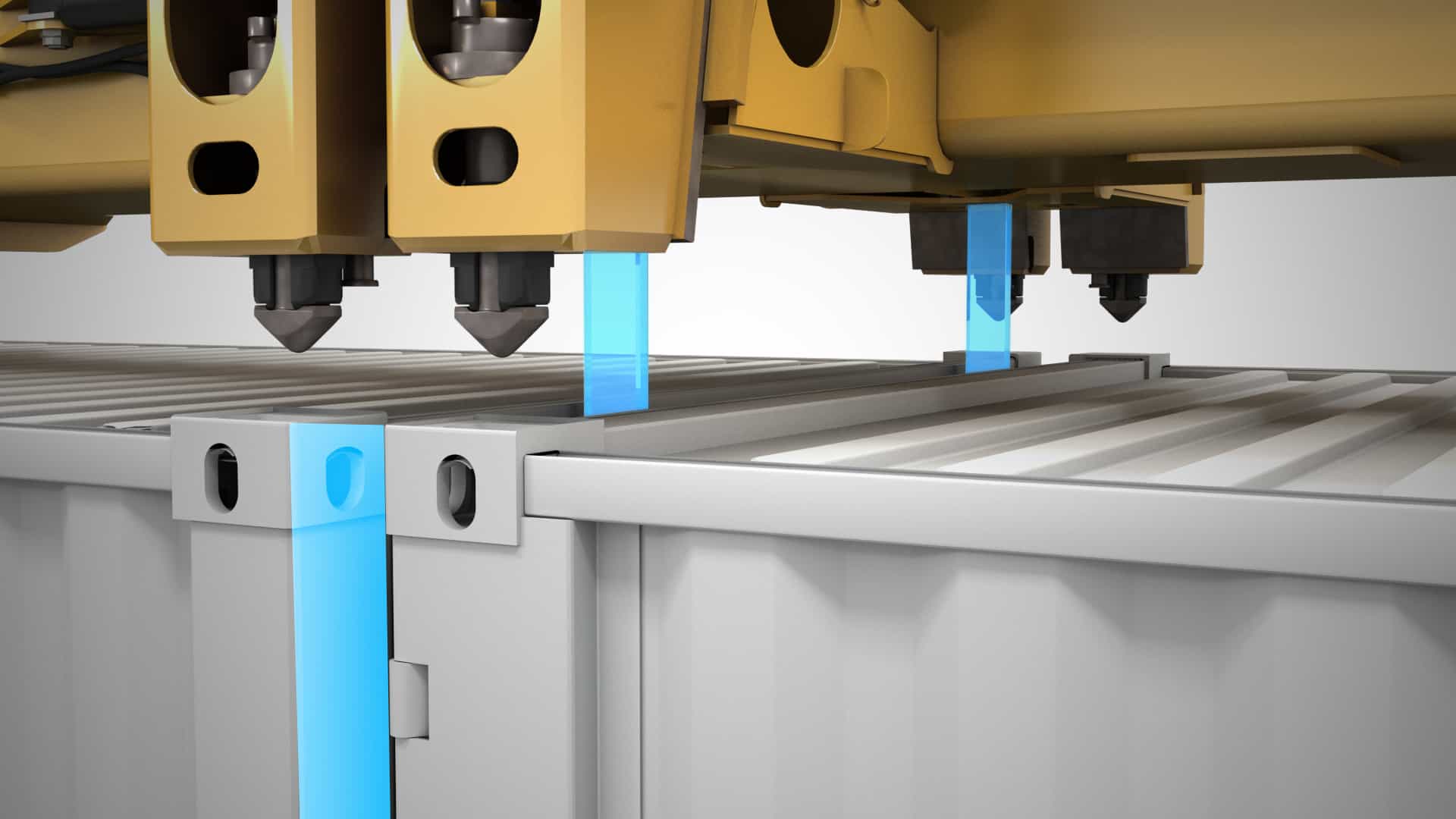

Double Gap
Detection System
Our straddle carrier spreaders are equipped as standard with a single gap detection system. Adding a second gap detection sensor makes it possible to detect misaligned containers more accurately.
A BETTER WAY FORWARD
AT YOUR SERVICE
Our dedicated specialists travel to your site to troubleshoot your equipment whenever you need them. If you prefer to let your own staff do the work, we can provide a thorough analysis and will support your technicians from afar.
SPREADER TYPE
SINGLE LIFT
twin lift
long-twin
Straddle Carrier Spreaders Features
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized visibility
A strong hydraulic cylinder based telescoping system telescopes the mono-beams in and out of the midframe. The cylinder is fast, produces little noise and requires no lubrication.
Cylinder Telescopic System
A mechanical blocking device driven by a hydraulic cylinder is mounted outside the midframe to absorb horizontal forces on the end beam during collision with a container. It also secures spreader telescoping positions.
Collision Protection
The gap detection system detects the gap in between two 20 ft. containers and works as a security system to prevent the spreader from locking in single mode.
Gap Detection System
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented Twistlock Design
Our straddle carrier spreaders are equipped with a dampening bracket to limit the spreader damage and reduces the noise while moving with a loaded carrier.
Dampening brackets
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Landing pin
Our automatic greasing system can service up to 50 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Automatic Greasing System
SUCCESS
Straddle Carrier Spreaders Options
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
LED Lights Dimmable
Automatic Positioning System adjusts the length and width of the spreader. Complete APS consists of multiple sensors which are mounted on the end beams. APS ensures smooth and fast aligning off the spreader on the container.
automatic positioning system
Time pressure leaves no room for error, let alone accidents. To increase productivity and for safety purposes, LED lights can be installed at the twistlocks to see the twistlock status.
Working Lights
It’s possible to fully customize our lifting equipment. Striping is often used as a safety option that shows the moving elements.
Safety Striping
Four (4) lifting lugs or hooks with each a capacity of 10t can be installed next to the twistlocks for vertical lifting of
