Spreader type

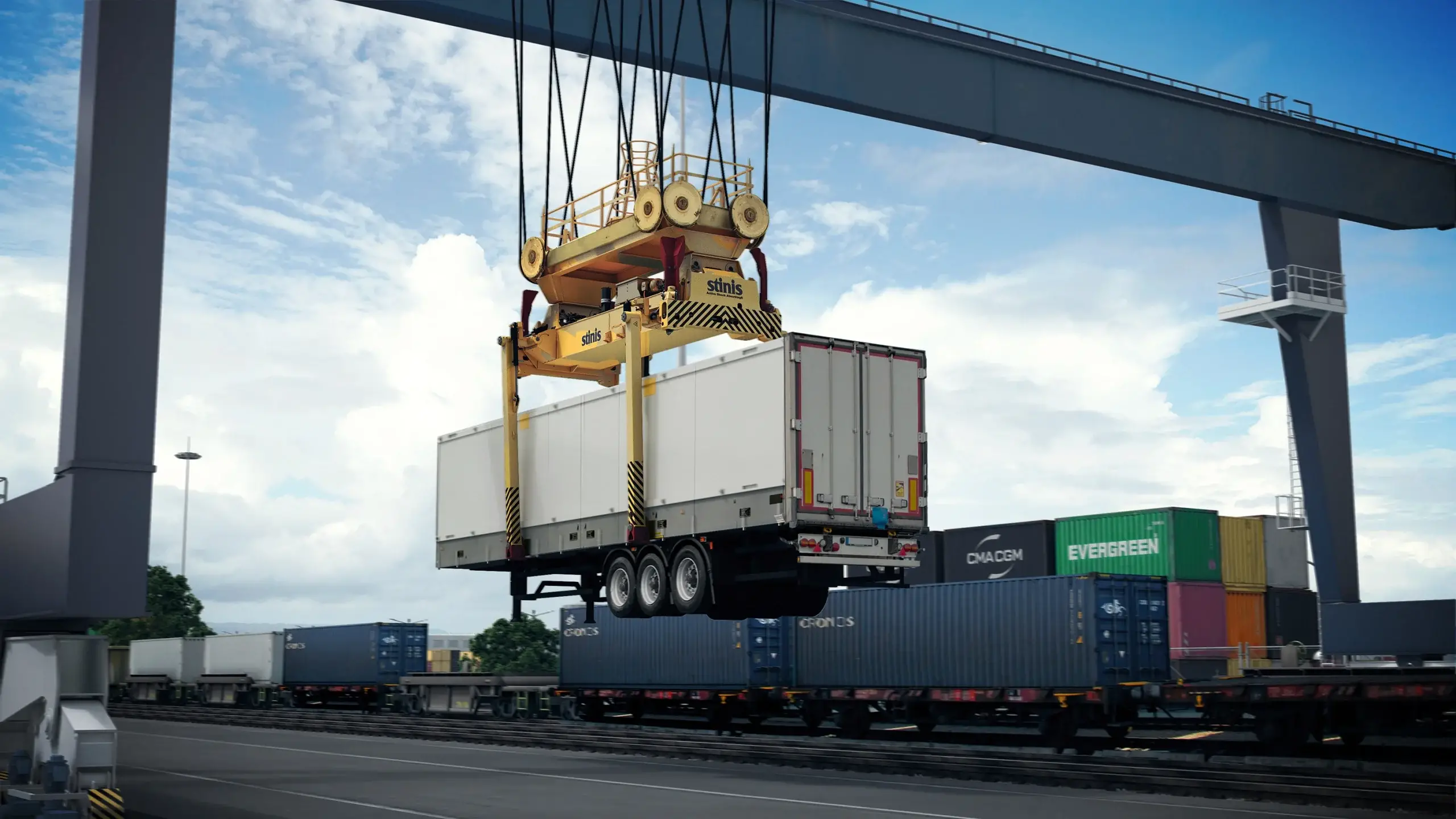

Piggyback Spreader
piggyback spreaders features
Adjustable angled feet
Feet that can rotate in an angle which makes grabbing trailers and swap bodies that are tilted easier.
Automatic Greasing System
Our automatic greasing system can service up to 50 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Fast & Smooth Telescoping
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Optimized
Visibility
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Patented Twistlock Design
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Collision
Protection
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Hydraulic
Loadsense System
The spreader is equipped with an energy saving hydraulic system. The system uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the minimum.
Foldable legs
When the legs are folded upwards the spreaders can be used as a STS spreader and has the width to enter a cell.
Landing
Pin
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Leg Positioning Sensors
The sensors tell the crane operator wether the legs are completely folded or unfolded.
Spring Controlled Flippers
While using the spreader in container mode these flippers can be used for faster positioning on the container.
POWER BEYOND CARGO
piggyback spreaders Options
Active Shock
Absorption®
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
LED Lights At The
Twistlocks
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective in combination with twistlock cameras when working in the ship’s cells.
Cameras At The
Twistlocks
Clear vision is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Corner Roll
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Height Indication
System
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
Powerful
Actuated Flippers
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Twin Twenty
Detection System
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single container mode. The system uses gap sensors and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.

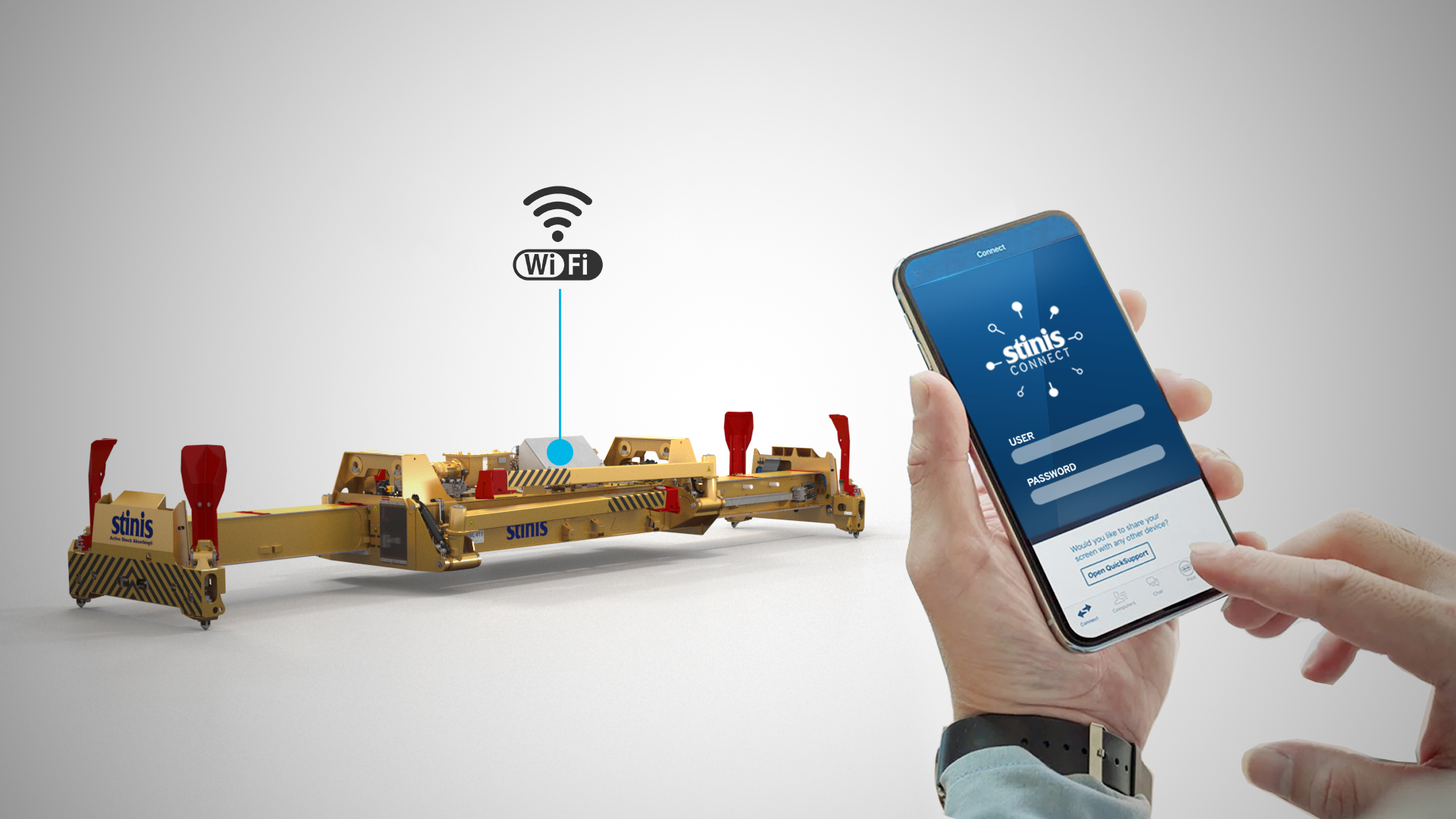

Stinis
Insight
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
LED Lights
Dimmable
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
Easy To Use
Touch Screen
Our spreaders can be equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
WE HAVE GOT YOUR BACK
AT YOUR SERVICE
Our dedicated specialists travel to your site to troubleshoot your equipment whenever you need them. If you prefer to let your own staff do the work, we can provide a thorough analysis and will support your technicians from afar.
SPREADER TYPE
Piggyback Spreader
Piggyback Spreaders Features
Feet that can rotate in an angle makes grabbing trailers and swap bodies that are tilted easier. A spring device ensures the feet always return to the nominal position.
adjustable angled feet
Our automatic greasing system can service up to 50 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
automatic greasing system
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Fast & Smooth Telescoping
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized Visibility
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented Twistlock Design
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Collision Protection
The spreader is equipped with an energy saving hydraulic system. The system uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the minimum.
Hydraulic Loadsense System
When the legs are folded up the spreaders can be used as a container spreader for block stacking and can enter a ship’s cell.
foldable legs
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Landing pin
The sensors tell the crane operator wether the legs are completely folded or unfolded.
leg positioning sensors
While using the spreader in container mode these flippers can be used for faster positioning on the container.
spring controlled flippers
POWER BEYOND
CARGO
piggyback spreaders Options
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Active Shock Absorption®
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective in with twistlock cameras.
LED Lights At The Twistlocks
Clear vision is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Cameras At The Twistlocks
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Roll Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid Cell Guidance
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
height indication system
Our flippers are made of high tensile steel and are driven by cylinder based actuators. This design maximizes performance and endurance to matches the spreader’s lifespan.
