Spreader type
Single Lift
Twin Lift

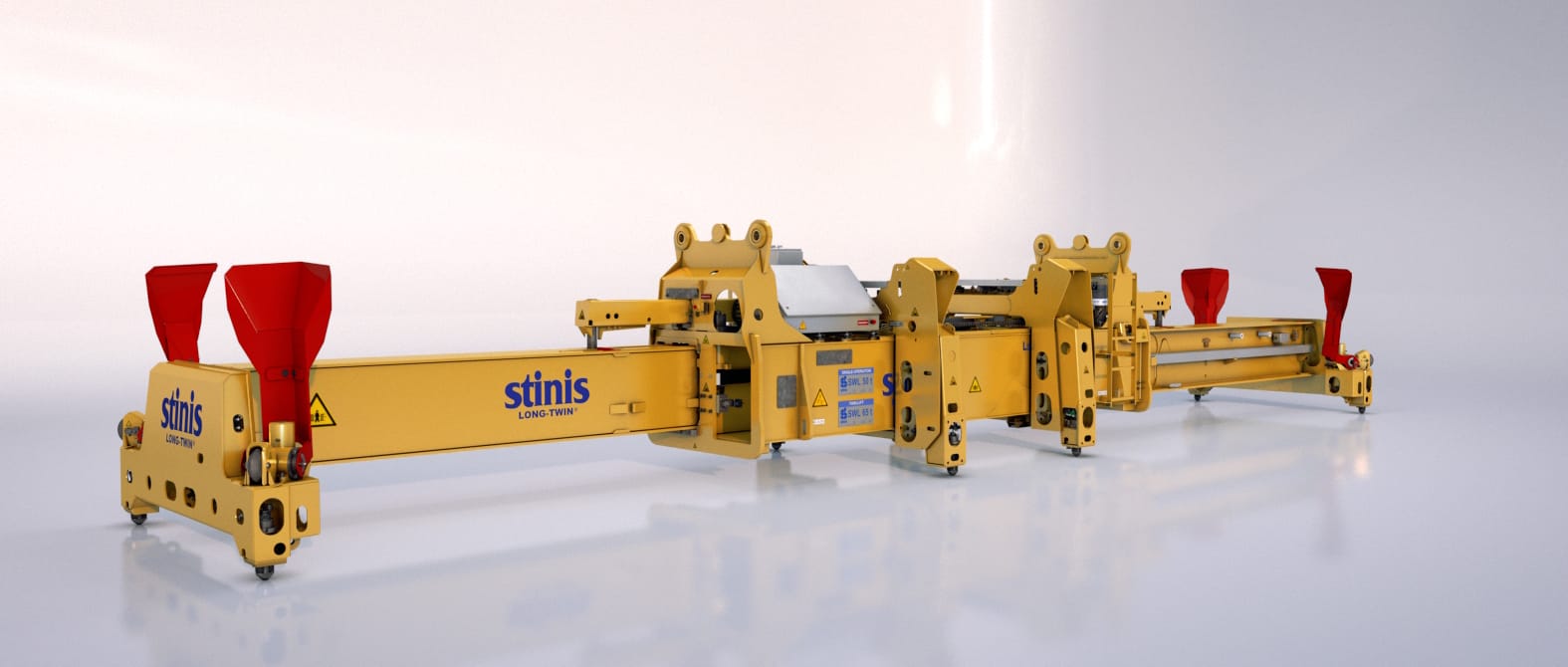

Long-Twin
ship to shore crane spreaders features
Optimized
Visibility
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Fast & Smooth
Telescoping
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Powerful
Flippers
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Collision Protection
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Automatic Greasing System
Our automatic greasing system can service up to 80 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Patented Twistlock Design
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Twin Twenty Detection System
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single container mode. The system uses gap sensors and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
Landing
Pin
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Memory Positioning System (LTW Only)
Adjust the long-twin distance from 0 to 1600 mm and configure different set points for the twin unit distance.
Hydraulic Loadsense System
The spreader is equipped with an energy saving hydraulic system. The setup uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the absolute minimum.
Easy To Use Touch Screen
Our spreaders are equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
ship to shore crane spreaders options
LED Lights
Dimmable
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
Corner
flippers (4)
Our ship to shore spreaders are standard equipped with four (4) strong moveable corner flippers. The corner flipper design includes a safety bar to prevent the flipper from falling in the event of an accident.
Flat
flippers (6)
Equip your spreader with six (6) moveable flat flippers to increase quay crane productivity. Placing your spreader on top of a container that is positioned close to other boxes
Cameras at
the Twistlock
Clear vision at the container twistlocks is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
LED Lights At
The Twistlocks
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective in combination with twistlock cameras when working in the ship’s cells.
Stinis
Insight

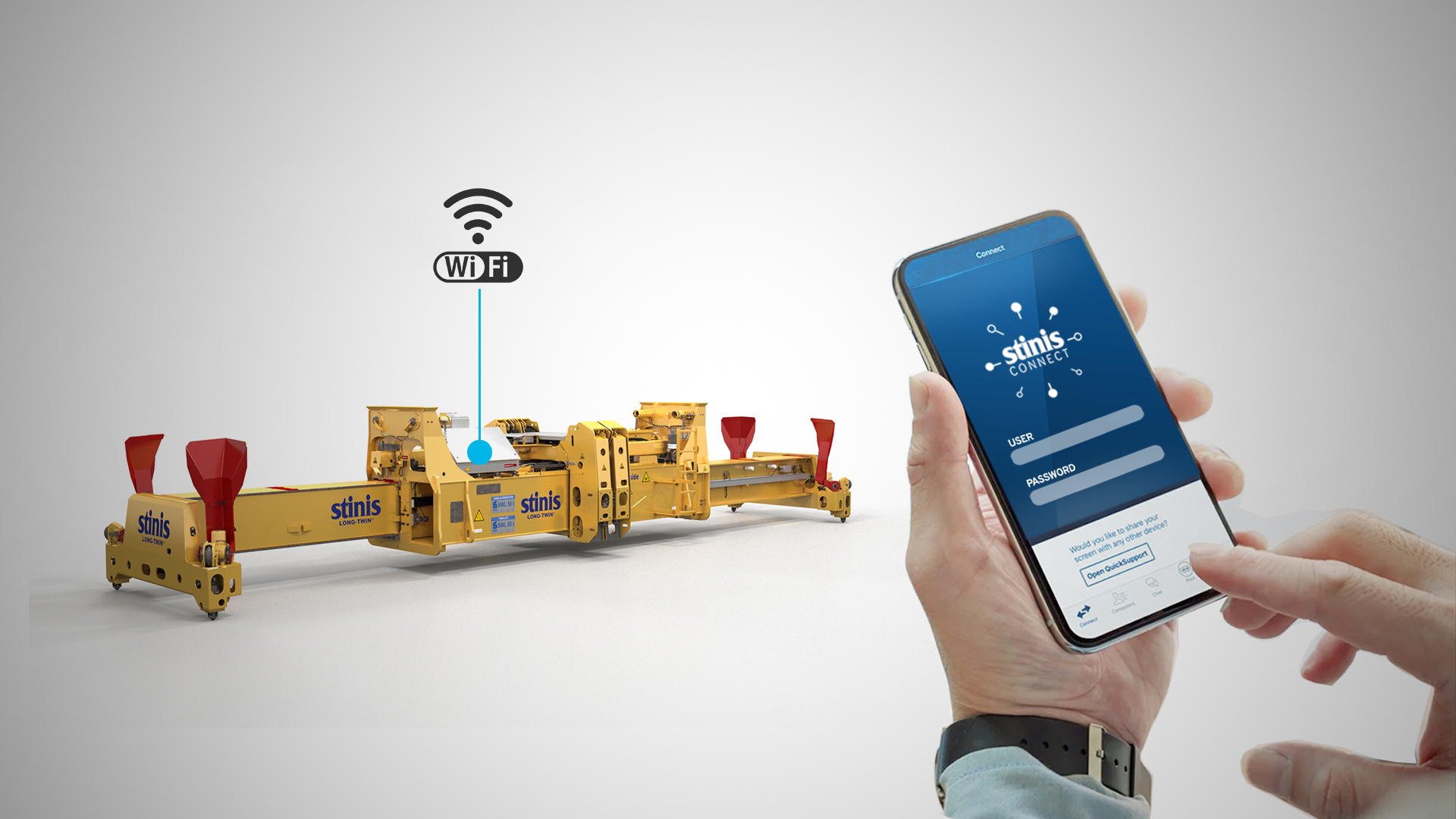

Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Active Shock
Absorption®
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Stacking
Fitting Boxes
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the spreader.
Ladders To
Headblock
The limited width of the midframe allows you to install anti-slip ladders on the side of the spreader to climb up the headblock.
Height indication
system
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
Corner Roll
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Overheight
Brackets
Four (4) brackets can be installed on the endbeams of your spreader to connect various brands of overheight frames, thus improving the versatility of the spreader.
Snow
Endbeam
The snow end beam is a useful option for terminals that experience snow, sand or debris on containers. Instead of needing to clear the whole container, it removes snow, sand and debris from around the corner castings. This results in smoother operation and could extend the lifetime of your spreader end beam.
SPREADER TYPE
SINGLE LIFT
Twin lift
long-twin
ship to shore crane spreaders Features
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized Visibility
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Fast & Smooth telescoping
Our flippers are made of high tensile steel and are driven by cylinder based actuators. This design maximizes performance and endurance to matches the spreader’s lifespan.
Powerful Actuated Flippers
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Collision protection
Our automatic greasing system can service up to 80 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Automatic Greasing System
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented twistlock design
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single mode. The system uses gap and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
Twin Twenty Detection System
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Adjust the long-twin distance from 0 to 1600 mm and configure different set points for the twin unit distance.
memory positioning (LTW ONLY)
The spreader is equipped with an energy saving hydraulic system. The system uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the absolute minimum.
Hydraulic loadsense system
Our spreaders are equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
Easy to use touch screen
PERFECTION
ship to shore crane spreaders Options
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety. Red or green indicate the lock or unlock signal and the white lights shows if a spreader is landed correctly.
LED Lights dimmable
Our ship to shore spreaders can be equipped with four (4) strong moveable corner flippers, depending on your preference in the logistic process. The corner flipper design includes a safety bar to prevent the flipper from falling in the event of an accident.
Corner flippers (4)
Equip your spreader with six (6) moveable flat flippers to increase quay crane productivity. Placing your spreader on top of a container that is positioned close to other boxes.
Flat flippers (6)
Clear vision at the container twistlocks is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
cameras at the twistlocks
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective with twistlock cameras.
LED Lights At the Twistlocks
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Stinis Insight
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Active Shock Absorption®
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the spreader.
stacking fitting boxes
The limited width of the midframe allows you to install anti-slip ladders on the side of the spreader to climb up the headblock.
ladders to headblock
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
height indication system
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
corner roll cell guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid Cell Guidance
Four (4) brackets can be installed on the endbeams of your spreader to connect various brands of overheight frames, thus improving the versatility of the spreader.
Overheight Brackets
The snow end beam is a useful option for terminals that experience snow, sand or debris on containers. Instead of needing to clear the whole container, it removes snow, sand and debris from around the corner castings. This results in smoother operation and could extend the lifetime of your end beam.
Snow Endbeam
DESIGN
Spreader type
Single lift
Twin Lift
Long-twin
ship to shore crane spreaders features
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized Visibility
Optimized Visibility
We achieve great telescope speeds due to a hydraulic steel reinforced rubber belt to move the monobeam. It is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Fast & Smooth Telescoping
Fast and Smooth Telescoping
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Powerful Flippers
Powerful Actuated Flippers
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Collision Protection
Collision Protection
Our automatic greasing system can service up to 80 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Automatic greasing system
Automatic Greasing System
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented Twistlock Design
Patented Twistlock Design
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single mode. The system uses gap and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
Twin Twenty Detection System
Twin 20 Detection System
Our spreaders are equipped with a landing pin on the side of each twistlock of the spreader. All landing pins have to be individually raised to enable the twistlocks to lock/unlock.
Landing Pin
Landing Pin
Adjust the long-twin distance from 0 to 1600 mm and configure different set points for the twin unit distance.
Memory Positioning System (LTW Only)
Memory Positioning
The spreader is equipped with an energy saving hydraulic system. The setup uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the absolute minimum.
Hydraulic Loadsense System
Hydraulic Loadsense System
Our spreaders are equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
Easy To Use Touch Screen
Easy To Use Touch Screen
ship to shore crane spreaders Options
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
LED Lights Dimmable
LED Lights Dimmable
Our ship to shore spreaders are standard equipped with four (4) strong moveable corner flippers. The corner flipper design includes a safety bar to prevent the flipper from falling in the event of an accident.
Corner flippers (4)
Corner Flippers
Equip your spreader with six (6) moveable flat flippers to increase quay crane productivity. Placing your spreader on top of a container that is positioned close to other boxes
Flat flippers (6)
Flat flippers (6)
Clear vision at the container twistlocks is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Cameras at the Twistlock
Cameras at the Twistlocks
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective in combination with twistlock cameras when working in the ship’s cells.
LED Lights At The Twistlocks
LED Lights at the twistlocks
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Stinis Insight
Stinis Insight
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Active Shock Absorption®
Active Shock Absorbing
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the spreader.
Stacking Fitting Boxes
Stacking Fitting Boxes
The limited width of the midframe allows you to install anti-slip ladders on the side of the spreader to climb up the headblock.
Ladders To Headblock
Ladders to Headblock
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
Height indication system
Height Indication System
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Roll Cell Guidance
Corner Roll Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid Cell Guidance
Corner Pyramid Cell Guidance
Four (4) brackets can be installed on the endbeams of your spreader to connect various brands of overheight frames, thus improving the versatility of the spreader.
Overheight Brackets
Overheight Brackets
The snow end beam is a useful option for terminals that experience snow, sand or debris on containers. Instead of needing to clear the whole container, it removes snow, sand and debris from around the corner castings. This results in smoother operation and could extend the lifetime of your spreader end beam.
Snow Endbeam
Snow Endbeam
